CAR Relays Automotive

We are Manufacturer, Supplier and Exporter of our product range. Our setup is situated in Pune, Maharashtra, India and majorly we serve our customers from all over India including metro cities like Pune, Mumbai, Bangalore, Chennai, Delhi, Hyderabad.


CAR Relays Automotive :

CAR Relays Automotive

Outline (L x W x H) : 26 x 21 x 20.2 mm
Weight : 20.2 g
Features :
• European and American footprints available offer different market selections.

• Customer can choose different construction version according to various manufacturing process from Open Type (without dust cover), Flux Solder type which can protect the Relays from dust, and Epoxy Resin Sealed type for PCB washing procedure.

• Special contact FE130 material is applied which creates the maximum 30~40 Amp rated current.

Contact Specification
Contact Form :

SPST / SPDT


Contact Rating :

30A/12VDC


Coil Specification
Coil Voltage : DC 6, 12, 24, 36, 48


AC

 ----
Power Consumption :

D Type: 1.59~1.89W
L Type: 0.6W


Dielectric Strength

Between Coil & Contact
(50/60 Hz for 1 minute)

AC 750V

Between Contact
(50/60 Hz for 1 minute)

AC 1,200V


Life Expectancy (Operations)

Electrical

1 x 105

Mechanical

1 x 107

Safety Standard
 NIL

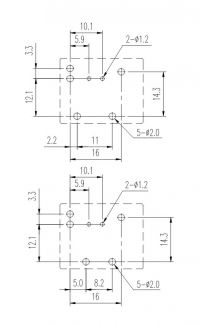

P.C.B Layout
CAR Relays Automotive
Mounting Method
 PC board terminal
